Lower-third bars showing the racers who just crossed a timing point, on any lap and in any group. The Screen Position setting picks the corner.

Available in: Lite · Standard · Premium

Set it up

  1. Select the Result Set used for ranks.
  2. Select the Timing Point to follow.
  3. Add a few short Racer Fields, such as a flag.
  4. Publish, then wait for the next crossing.

Controls

Control What it does
Result Set Follows every group in this set. The rank is the racer’s rank in their own group.
Timing Point The timing point to follow, on every lap. The bar names the crossing, such as L2 or Finish.
Racer Fields Values shown after the name. Location fields show as flags. Long names are shortened.
Maximum Racers Shown How many bars can show at once. Three by default.

What to expect

  • The view stays empty until the next racer crosses. It does not show past crossings.
  • Each bar stays up for half the Cycle Time, 5 seconds by default.
  • When the race is busy, the oldest bar makes room for the newest crossing.
  • The top three of a group show in medal colours and stay on top.

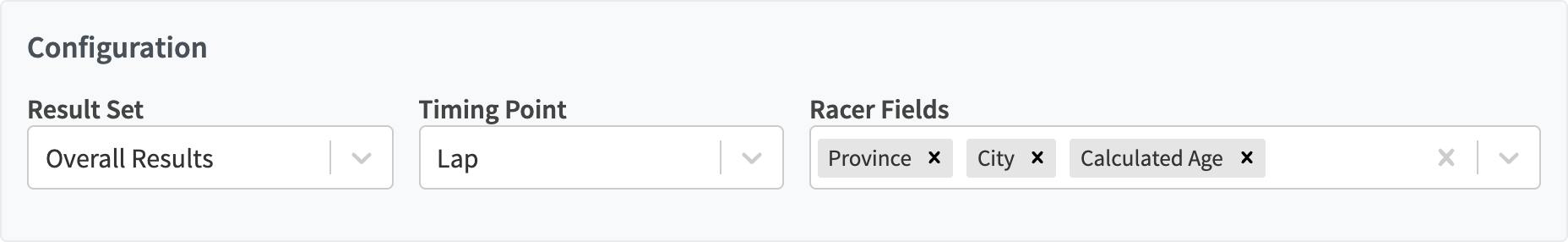

Latest Crossing controls for result set, timing point, and racer fields Pick a result set and a timing point, then the racer fields to show.

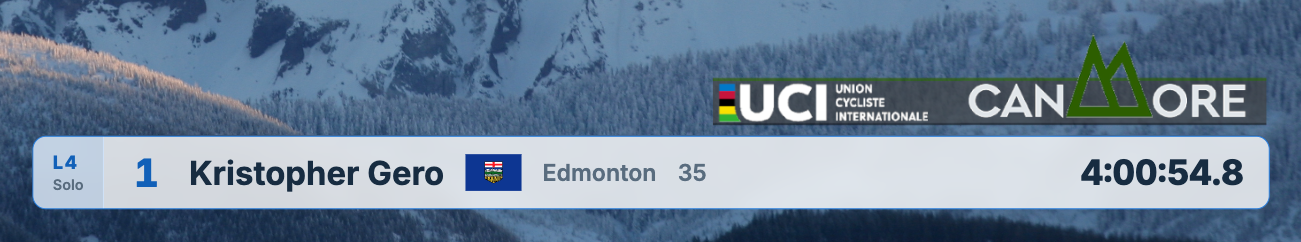

Latest Crossing bar with the lap, group, rank, name, flag, and time under the sponsor header Each racer through that timing point gets a bar for a moment.
